Model |

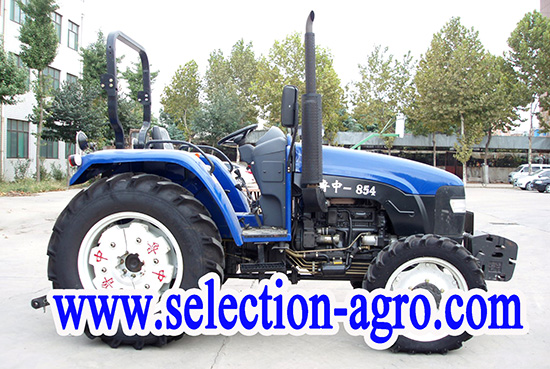

SL854 |
Type |
4WD Wheeled Type |
Dimensions of Tractor(mm) |
Length (to front ballast) |
4090 |
Width |
1900 |
Height (to the exhaust vent) |
2690 |
Tread |
Front Wheel |
1455 |
Tread |
Rear Wheel |
1520 |
Axle Base |
2316 |
Min.Ground Clearance |
350 |
Structure weight (kg) |
2940 |
Ballast weight
(kg) |
Front ballast |
250 |
Rear ballast |
170 , 340 , 510 (optional) |
Rated traction force (kg) |
1520 |
Engine |
Model |
4108 |
Type |
Vertical,4-Cylinder,Water Cooled and 4-stroke |
Rated Power(kw) |
62.5 |
Rated speed (r/min) |
2200 |
Fuel |
Diesel |
Tyre |
Front Wheel |
8.3-24 / 9.5-24 |
Rear Wheel |
14.9-30 / 16.9-30 |
Clutch |
Dual-stage clutch |
Steering |
power steering |
Transmission Type |
8+2 or (8+2)×2 with creeper shift |
Suspension Type |
3-point links |
PTO |
Type and Rev |
Semi-independent Type 540/1000 |
Spline Size |
F35 Rectangle Spline with 8 teeth |
