Model |

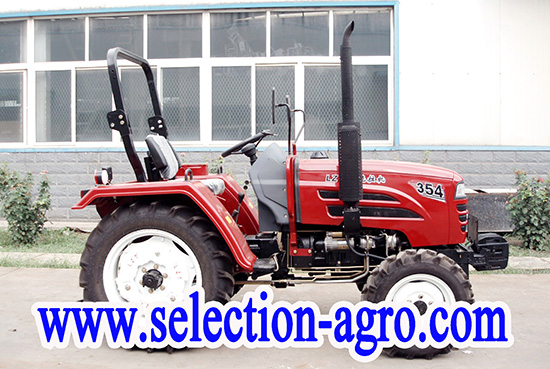

SL354 |
Type |
4WD Wheeled Type |
Dimensions of Tractor(mm) |
Length (to front ballast) |
3030 |
Width |
1470 |
Height (to the exhaust vent) |
1900 |
Tread |
Front Wheel |
1215 Fixed or 1150~1215 Adjusted |
Tread |
Rear Wheel |
1300 Fixed or 1300~1350 Adjusted |
Axle Base |
1710 |
Min.Ground Clearance |
347.5 |
Structure weight (kg) |
1130 |
Ballast weight(kg) |
Front ballast |
56 |
Rear ballast |
112 |
Rated traction force (kg) |
591 |
Engine |
Model |
490 |
Type |
Vertical,4-Cylinder,Water Cooled and 4-stroke |
Rated Power(kw) |
25.7 |
Rated speed (r/min) |
2400 |
Fuel |
Diesel |
Tyre |
Front Wheel |
6.00-14 |
Rear Wheel |
9.5-24 |
Clutch |
Dual-stage clutch |
Steering |
power steering |
Transmission Type |
8+2 or 8+8 with shuttle gearshift or 16+4 with creeper shift |
Suspension Type |
3-point links |
PTO |
Type and Rev |
Semi-independent Type 540/1000 |
Spline Size |
F35 Rectangle Spline with 6 teeth |
